Model No: 18012SA-12AG143-X

Specifications:
Material And Finish:
Insulator:Nylon 9T UL94V-0 Color:Black
Contact:Copper Alloy

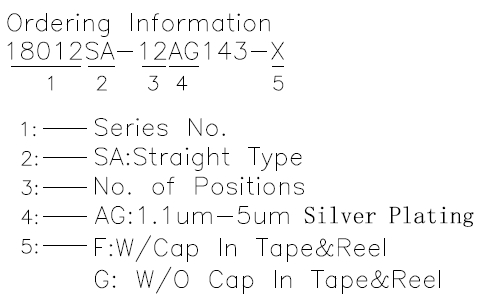

Plated:See Ordering Information


Rating:
Current Rating:1.5 Amp
Operating Temperature Range:-40°~+85°C


Electrical:
Contact resistance:10m Ohm Max
Insulator resistance:100M ohm min.
Withstanding Voltage:500V AC/Minute


Mechanical Requirements:
Insertion Forces:5N Max(Each PIN)
Withdrawal Force:4N Max(Each PIN)
Terminal Bend Resistance:3N/15s
