Home > Products > > Wafer/Housing > .031" (0.8 mm)Pitch Wafer/Housing > 0801

Wafer/Housing

Product number: A0801M-XXX-01-X

Specifications:
Material And Finish:
Insulator:LCP UL94V-0 Color:Natural
Contact:Phosphor Bronze

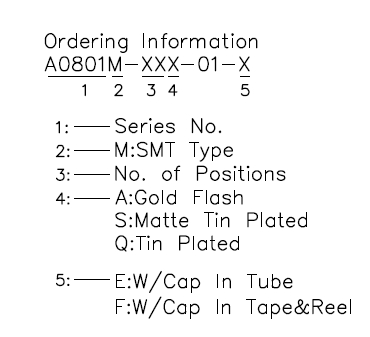

Plated:See Ordering Information

Rating:
Current Rating:0.5 Amp
Voltage Rating:30V AC/DC
Operating Temperature Range:-40°~+125°C

Electrical:
Contact resistance:20m Ohm Max
Insulator resistance:100M ohm min.
Withstanding Voltage:200V AC/Minute

Item no.:

A0801M-02Q-01-NF
A0801M-03Q-01-NF
A0801M-04Q-01-NF
A0801M-05Q-01-NF
A0801M-06Q-01-NF
A0801M-08Q-01-NF
A0801M-10Q-01-NF
A0801M-12Q-01-NF
A0801M-14Q-01-NF
A0801M-15Q-01-NF
A0801M-16Q-01-NF
A0801M-17Q-01-NF
A0801M-18Q-01-NF
A0801M-19Q-01-NF
A0801M-20Q-01-NF

Industry application:

New Energy Vehicles
Vehicles
Automotive
Medical Treatment
Home Appliances
Solid State Lighting
Consumer Goods
Data / Calculations
Science

Product Manual:

0801 Product Manuals

Product specification sheet:

0801 Product Specification

2D Drawings(pdf):

A0801M-XXX-01-X

Environmental test report:

Material certificate:

MSDS:

Specifications and other documents:

Form a complete set of products:

Product conforms to the environment

产物环境 Download（PDF）

工期椟槥 Download（PDF）
