产品编号: DBHDMIR-15F19MX-X

Specifications:
Material:
Housing(VGA):PBT, UL 94V-0, Color:Blue.
Housing(HDMI):LCP,UL 94V-0, Color:Black.
Connecting Pedestal:PA9T,UL 94V-0, Color:Black
Terminal:Copper Alloy.
Shel(VGA):SPCC.
Shell(HDMI):Copper Alloy
Boardlock:Copper Alloy,
Bracket:Zinc Alloy.
Gasket:Stainless Steel
Screw:Copper Alloy

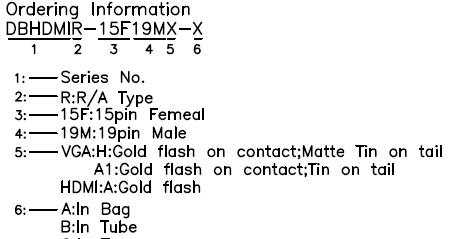

Plated:See Ordering Information


Finish:
Terminal(VGA):Gold Plated Over Nickel at Contact Area
           Tin Plated Over Nickel at Solder Area.
Terminal(HDMl):Full Gold Plated Over Nickel Area.
Shell:Nickel Plated
Boardlock:Tin Plated.
Bracket:Nickel Plated
Screw:Nickel Plated.
This Product is LEAD-FREE & RoHS
Compliance Product.


Rating & Electrical:
VGA:
Voltage Rating:250V AC(RMS) Max
Current Rating:3.0 Ampere per Contact
Contact resistance:25m Ohm Max
Insulator resistance:5000M ohm min.
Withstanding Voltage:1000V DC(RMS)
Total Mating Force:6.0Kgf Max
Total Unmating Force:1.2Kgf Min
Operating Temperature Range:-55°~+85°C
HDMI:
Voltage Rating:40V AC(RMS) Max
Current Rating:0.5 Ampere per Contact
Contact resistance:30m Ohm Max
Insulator resistance:100M ohm min.
Withstanding Voltage:500V DC(RMS)
Total Mating Force:4.5Kgf Max
Total Unmating Force:1.0Kgf Min
Operating Temperature Range:-55°~+85°C
