Specifications:
Material And Finish:
Housing:LCP UL94V-0 Color Natural
Contact:Phosphor bronze
Plating:Gold Flash

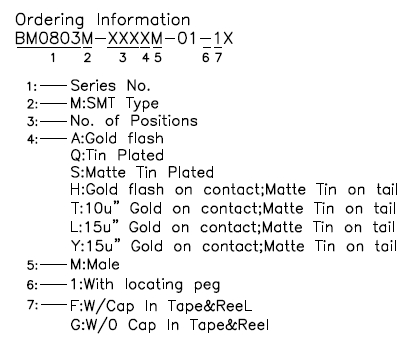

Plated:See Ordering Information
Rating:
Current Rating:0.5 Amp
Voltage Rated:50V AC/DC
Operating Temperature Range:-40°~+125°C
Electrical:
Contact resistance: 50m Ohm Max
Insulator resistance:100M ohm min.
Withstanding Voltage:500V AC Min
Insertion Force:150g Max. Per Contact.
Withdraw Force:10g Min. Per Contact.
